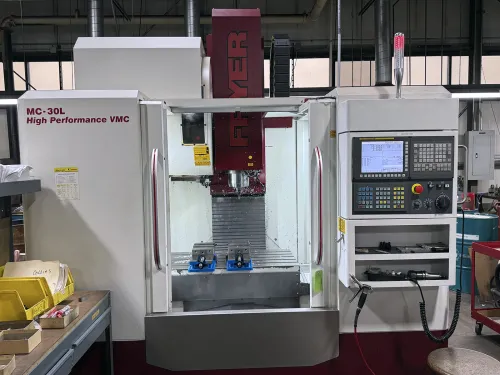

Fryer MC-30L 2020

MACHINE SPECIFICATION

• X Travel

  30"

• Y Travel

  20"

• Z Travel

  20"

• Ballscrew Size

  1.57"

• Table Load (Evenly Distributed)

  2,500 LBS

• Table Size

  20"X35"

• T-Slots (NO./Width)

  5/.708"

• TableTop To Floor

  28"

• Motor HP (Peak)

  28HP

• Spindle Speed (RPM)

  60-10,000

• Spindle Torque (Max)

  155 FT/LBS @ 350 RPM

• Tool Type/Taper

  BIG PLUS CAT 40

• Spindle Nose to Table (Max-Min)

  24"-4"

• Spindle Center to Column

  21"

• Tool Storage Capacity

  30 STATION HIGH SPEED ARM TYPE

• Tool Change Time

  1.5 SEC

• Max. Tool Diameter (Full)

  3.2"

• Max. Tool Diameter (Adjacent Empty)

  5.9"

• Max. tool weight

  15.4 LBS

• Max. Tool Length

  13"

• Positioning Accuracy X,Y,Z

  +/- 0.0002"

• Positioning Repeatability X,Y,Z

  +/- 0.0001"

• Resolution

  0.0001"

• Rapid Traverse

  1,450 X, Y, Z

• Cutting Feed Rate

  .001 - 1,200 IPM

• Servo Type

  AC Digital Brushless

• Axis Thrust (Peak)

  4,000 lbs. X, Y, Z

• Air Pressure Requirements

  90PSI - 5 CFM

• Coolant Capacity

  90 Gallons

• Coolant flow

  9 gal/min

• Door Open Width

  32"

• Power Requirements

  40amp 380-500 VAC 3PH

• Machine Weight

  9,500 LBS

• Operating Dimensions (W X D X H)

  111"X86"X110"
