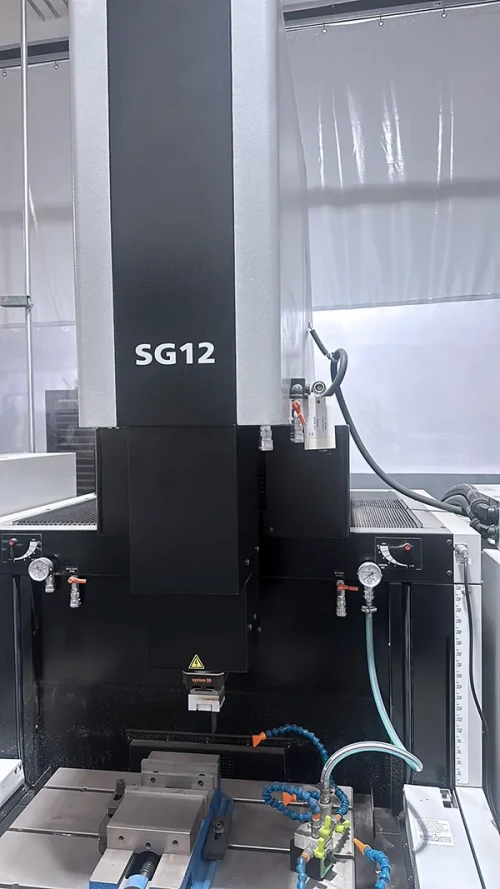

Mitsubishi SG-12 2023

MACHINE SPECIFICATION

• Rapid Travel Speed

  275.5

• Minimum drive unit

  .001

• Minimum indexing angle

  .001

• Speed

  1 to 30 RPM

• Graphic Display

  19' TFT Color LCD

• Program Support Function

  E.S.P.E.R. II

• Power Supply

  GV80P

• Machine Weight

  7716 lbs (Power Supply)

• Machine Systems Dimensions

  67.9 x 83.9 x 95.3

• Motor Coupling Type

  Direct Drive

• Drive Motor Type

  intelligent AC Servo

• X-Axis Travel

  15.7 inches

• Machine Structure

  fixed table / traveling column

• Floor to table level distance

  35.4

• Max workspace dimensions

  35.4 x 25.6 x 13.8

• Max Electrode Weight

  110 lbs

• Table Dimensions

  27.5 x 19.7

• Work Tank

  3 sided drop tank

• Dielectric Fluid Capacity

  2.6~15.7

• Work tank dimensions (W x D x H)

  37 x 27 x 17 (Internal)

• Z-Axis Travel

  11.8 inches

• Y-Axis Travel

  11.8 inches
