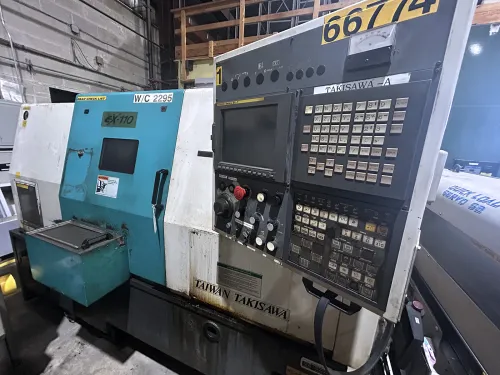

Takisawa EX-110 2003

MACHINE SPECIFICATION

• X Axis Travel

  8 1/2"

• Z Axis Travel

  28"

• Chuck Size

  10"

• Chuck Size – Maximum Swing

  19 1/2"

• Turning Diameter Maximum

  15 3/4"

• Turning Length Maximum

  28"

• Bar Capacity

  3"

• Tailstock Quill Diameter

  4 1/4"

• Tailstock Stroke

  5.880"

• Tailstock Quill Center

  MT#5

• Tailstock Body Travel

  22.880"

• Spindle Speed Variable

  50 – 3500 RPM

• Spindle Nose

  A2-8

• spindle power

  25 HP

• Spindle Bore

  3.38"

• Turret, Bi-Directional

  12 Position

• Tool Shank Size Square

  1"

• Tool Shank Size Round

  2"

• Approximate Dimensions

  110"L x 67"W x 71"H

• Approximate Weight

  11,000 Lbs
