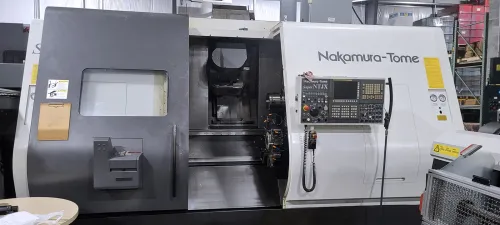

Nakamura Tome Super-NTJX 2007

MACHINE SPECIFICATION

• Max. turning diameter / max. turning length

  9.64” / 42.91”

• Distance between spindles max

  50.78” / min. 8.26”

• Bar Capacity:

  2.5”

• Axis Travel

• Slide travel (X1 / X2 / Z1 / Z2 / B2)

  17.91” / 8.75” / 42.91”/ 39.56” / 39.68”

• Slide travel (Y1 / Y2)

  ±2.76 / +.787”, -1.96”

• Spindle L, R

• Spindle Speed

  4500 RPM

• L spindle motor

  20/15HP / 221.5/162.5N·m

• R spindle motor

  15/10HP / 208/115N·m

• Tool Spindle

• Tool Spindle Speed

  12,000 RPM

• TOOL SPINDLE MOTOR

  10/5 HP, Max54N·m

• Tool Shank Type

  CAPTO-C6

• ATC, Number of tools

  40+120 (160)

• Max. tool diameter / No adjacent tools

  2.75” / 3.54”

• Max. tool length / Max. tool weight

  11.02” / 17.6 lbs

• Orientation function

  90 degree indexing

• B-axis positioning range

  190° (±95°)

• Lower Turret

• Driven-tool spindle speed

  3600 RPM

• DRIVE MOTOR

  7.5 / 5 HP / Max. 24N·m

• Type of turret / Number of indexing pos.

  Dodecagonalk / 24st

• Drive type / Number of driven-tool stations indv. rotation / 12

• GENERAL

• Floor space (L × W × H)

  186” x 115” x 96.3”

• Machine weight (incl.control)

  30,870 lbs
