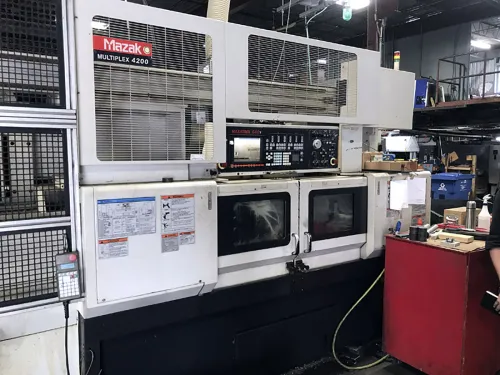

Mazak Multiplex 4200 2004

MACHINE SPECIFICATION

• Max Swing

  12.5"

• Standard Cutting Diameter

  10.24"

• Maximum Bar Distance

  2.0"

• Maximum Machining Length for Chuckwork

  7.0"

• Maximum Machining Length for Shaftwork

  21.0"

• Main Spindle

• Distance b/w spindle faces

• Max. (both heads @ home position)

  46.85"

• Min

  10.15"

• Spindle Nose

  A2-6

• Spindle Bore

  2.4"

• Spindle Speed/Ranges

  35-5,000 RPM/1

• Spindle Horsepower (Cont/30 Mins)

  20/30 HP (A.C.)

• Spindle Torque

  258.2 ft.-lbs.

• Turret (L&R)

• Type of Turrets

  Dodecagonal/Drum Non-Lift

• Tool Holder Shanks

  Modified VDI

• Turret Index Time (1-step)

  0.2 sec

• Total number of tools

  24 (12x2)

• Tool Size (Turning & Facing)

  1" x 1"

• Tool Size (Boring Bar Max. Dia.)

  1-1/2"

• Axis

• Travel X-Axis (L&R)

  9.06"

• Travel Z-Axis (L)

  17.25"

• (R)

  19.37"

• Rapid Traverse: X-Axis

  1200 IPM

• Z-axis

  1300 IPM

• Machine Floor Space w/o Bar Feeder

  81.54" x 140.6" (W x L)

• Machine height

  82.3"

• Total Power Required

  77.4 KVA

• Air Requirements

  71 PSI / 14 CFM

• Total Weight

  16,060 lbs
