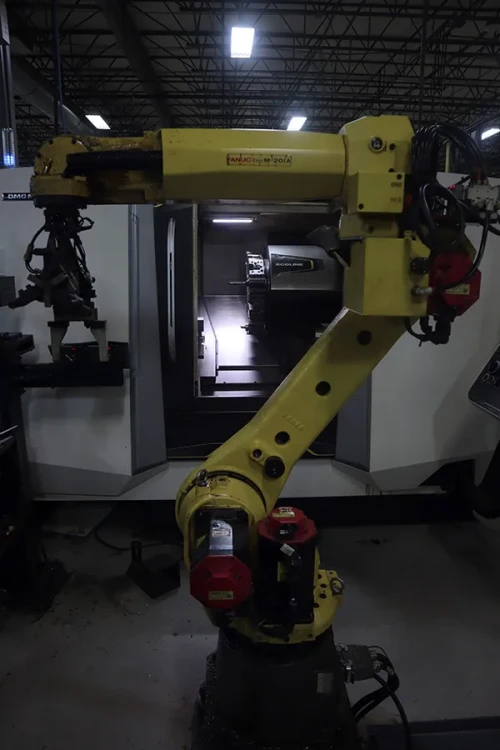

DMG Mori EcoTurn 450 2016

MACHINE SPECIFICATION

• Swing Over Bed (Z-axis slide cover)

  26.77"

• Swing Over Ned (chuck wiper base cover)

  24.80"

• Swing over cross slide

  1.57"

• DISTANCE BETWEEN CENTERS

  26.97"

• Max. Turning Diameter

  15.98"

• Max. Turning Length

  22.36"

• Max Bar Working Capacity

  3.15"

• X-Axis Travel

  10.53"

• Z-Axis Travel

  23.62"

• Spindle Speed Ranges

  4000

• Number of Spindle Speed Ranges

  unchangeable

• Spindle Nose Type

  A2-8

• THROUGH-SPINDLE HOLE DIAMETER

  3.58"

• Minimum Spindle Indexing Angle

  0.01 spindle mode

• Spindle bearing inner diameter

  5.12"

• Chuck

  10" hollow & solid; 12" hollow & solid

• Turret Type

  12 stations

• Turret Tool Mounting Capacity:

  12 tools

• Height of Angled Tool Shank Section

  1"

• Diameter of Boring Bar Shank Section

  2"

• Rapid Traverse Rate

  X-1181.19ipm, Z-1181.10ipm, tailstock (digital tailstock spec.): 787.4" (retract) / 275.59" (advance)

• Jog Feedrate

  X, Z, B: 0-196.85ipm [21 steps]

• Tailstock Travel

  19.69"

• Tailstock Spindle Taper Hole

  MT5

• Spindle Drive Motor

  (1/6H/40% ED/Cont.): 24.66/20/16 HP

• Feed Motors (X/Z)

  2.66 HP

• Hydraulic Pump Motor

  2.0 HP

• Lubricating Pump Motor

  0.02 HP

• Coolant Pump Motors

  0.43 / 0.69 HP

• Chip Conveyor Motor:

  0.33 HP

• Hydraulic oil tank capacity

  2.64 gal.

• Lubricating Oil Tank Capacity

  0.53 gal.

• Coolant Tank Capacity

  34.32 gal.

• Machine height

  76.06"

• Floor Space (only machine):

  117.13" x 77.09" (w/o operation panel)

• Floor Space (including Right Disposal Chip Conveyor):

  166.34" x 77.09" (w/o operational panel)

• Floor Space (including Rear Disposal Chip Conveyor):

  104.57" x 133.86" (w/o operational panel)

• Machine Mass (including Right Disposal Chip Conveyor)

  12,100lb
