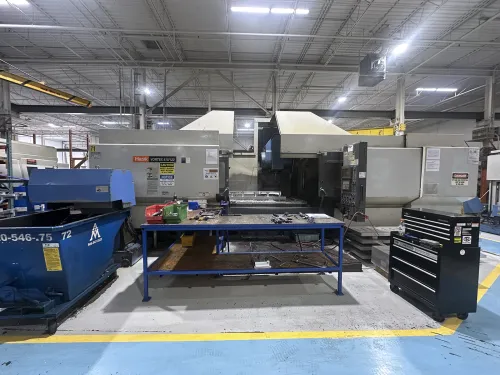

Mazak Vortex 815/120-5X 2001

MACHINE SPECIFICATION

• Table Size

  31.9″ x 127.6″

• Travels

• X Axis Travel

  120″

• Y Axis Travel

  31.89″

• Z Axis Travel

  29.53″

• A axis

  +/- 30°

• B Axis

  +/- 30°

• Max Table Load

  6,600 Lbs.

• Max Workpiece Height

  28.5″

• Distance from spindle nose to table top

  5″ – 29.1″

• Rapids

• Traverse Rate (X&Y Axis)

  945 IPM

• Traverse Rate (Z Axis)

  787 IPM

• Traverse Rate: (A&B Axis)

  3600 Deg/Min

• Max. Programmable Feedrate (X&Y Axis)

  315 IPM

• Spindle

• Spindle Taper

  CAT 50

• Max Spindle Speed

  25 – 10,000 RPM

• Spindle HP

  40 HP

• Magazine

  60 ATC

• Max Tool Dia

  4.92″

• Max Tool Dia With Adj. Pockets Empty

  8.27″

• Max Tool Length

  14.96″ Dia.

• Max Tool Weight

  44 Lbs.

• Servo Drives

  AC Motor

• Power Required (Machine Only)

  95.0 KVA

• Dimensions (Approx LxWxH)

  335″ x 177″ x 120″

• Weight

  35,200 Lbs.
