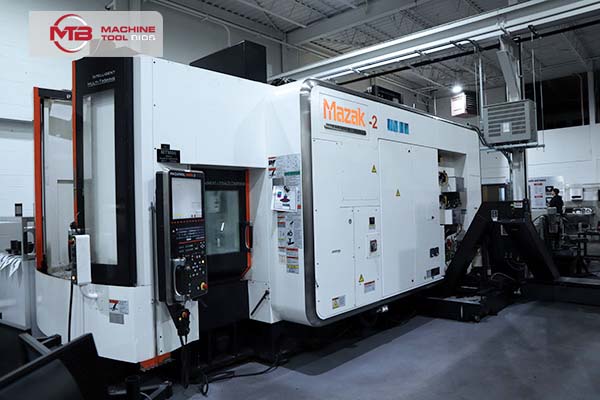

Mazak Integrex j-200 2013

MACHINE SPECIFICATION

• Max Turning Diameter

  19.69"

• Maximum Cutting Length

  19.69"

• X-Axis Travel

  17.72"

• Z-Axis Travel

  21.65"

• Y-Axis Travel

  7.87"

• C-Axis Indexing

  0.001 deg

• Main Spindle Bore Diameter

  3"

• Main Spindle Maximum Bar Work

  2.5"

• Main Spindle Speed

  5,000 RPM

• Main Spindle Horsepower

  15HP

• ATC Magazine Capacity

  36

• B Axis Rotary Tool Spindle Speed

  12000 rpm

• B-Axis Rotary Tool Spindle Horsepower

  10 hp

• B-Axis Indexing

  1 degree

• Parts Catcher

  Yes

• Chip Conveyor

  Yes

• Milling Spindle Synchronous Tapping

  Yes

• Tool Eye Automatic Front Spindle

  Yes

• Coolant Thru Milling Head

  Yes

• Multi Tap Transformer

  Yes

• Control

  CNC (MAZATROL MATRIX)

• Weight

  13,530 LBS
