WF Wells F1620 1994
Bed and Vise Wear Strips, Automatic Kerf Compensation, Blade Break/Stall Switch
-
WF Wells
-
F1620
-
1994
-
wf wells
-
#3642351
-
N/A
MACHINE SPECIFICATION
-
Capacity
Rectangular at 90Deg 16" High x 20"Wide, Round 16" Diameter
-
Capacity
Rectangular at 90Deg 16" High x 20"Wide, Round 16" Diameter
-
Weight Capacity
5,000 lbs
-
Weight Capacity
5,000 lbs
-
Blade Speed
60-500 SFPM
-
Blade Size
1 1/4” X .042" X 15"
-
Blade Speed
60-500 SFPM
-
Blade Guides
Roller Guides with Carbide Inserts
-
Blade Size
1 1/4” X .042" X 15"
-
Vise
Hydraulic, Full Stroke, 15" High
-
Blade Guides
Roller Guides with Carbide Inserts
-
Vise
Hydraulic, Full Stroke, 15" High
-
Bandwheel Size
20"
-
Bandwheel Size
20"
-
Blade Tension
Hydraulic
-
Blade Tension
Hydraulic
-
Blade Drive
7 1/2 HP, AC Vector Drive
-
Blade Drive
7 1/2 HP, AC Vector Drive
-
Sawing Force
0-750 lbs
-
Coolant Capacity
15 Gallons
-
Sawing Force
0-750 lbs
-
Hydraulic Capacity
20 Gallons
-
Coolant Capacity
15 Gallons
-
Hydraulic Drive
2 HP Motor
-
Hydraulic Capacity
20 Gallons
-
Work Height
35"
-
Hydraulic Drive
2 HP Motor
-
Shuttle Indexes
Unlimited
-
Work Height
35"
-
Projection Accuracy
+/-.002"
-
Shuttle Indexes
Unlimited
-
Remnant End
4"
-
Shipping Weight Approx
4,000 lbs
-
Projection Accuracy
+/-.002"
-
Electric
Wired to NFPA 79 Machine Tool Standards
-
Remnant End
4"
-
Shipping Weight Approx
4,000 lbs
-
Machine Dimensions
104" Length x 101" Width x 88" Height
-
Electric
Wired to NFPA 79 Machine Tool Standards
-
Machine Dimensions
104" Length x 101" Width x 88" Height
MACHINE EQUIPPED WITH
Conveyor
- Blades
- Coolant pan
- Transformer
- Bed and Vise Wear Strips
- Automatic Kerf Compensation
- Blade Break/Stall Switch

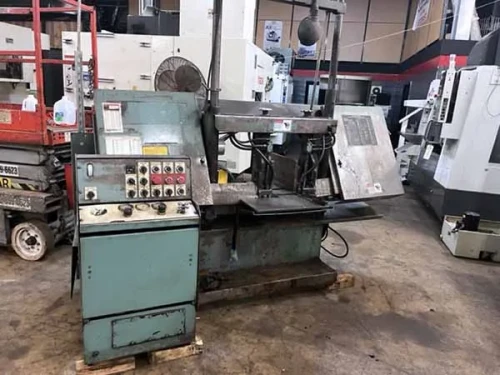

MACHINE DESCRIPTION
Used 1994 WF Wells F1620. Machine Tool Bids offers plenty of Horizontal Band Saws and other fabrication and CNC machines for great prices. Contact us if you have any questions about this WF Wells F1620 Bandsaw
