CALL FOR PRICE - Listing Price

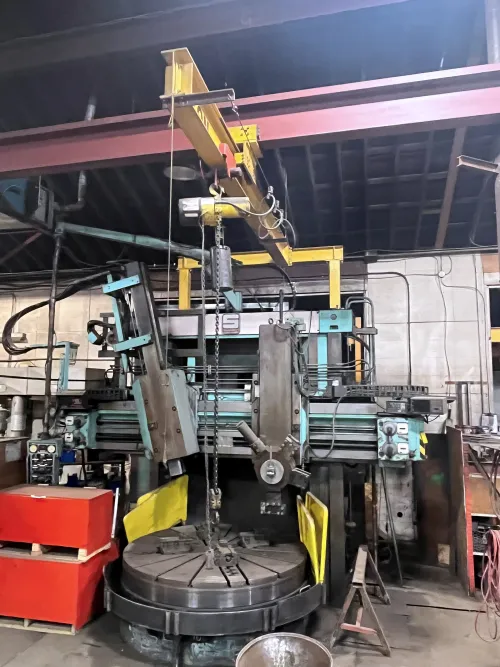

Summit 80" VTL

36" Ram Stroke, Newall 2-Axis Digital Read Out, 5-Position Right Hand Turret

  • Summit

  • SC2000

  • N/A

  • N/A

  • N/A

  • Vertical Turret Lathe

MACHINE SPECIFICATION

  • Table Diameter

    78.74"

  • Maximum Turning Diameter

    82.67"

  • Maximum Height Under Rail

    59.05"

  • Turret Stroke

    30"

  • Ram Stroke

    36"

  • Max Load

    26,500 lbs

  • Head Swivel

    35 Degrees

  • TABLE SPEEDS

    1.55-140 RPM

  • Feeds

    .002-.199 IPR

  • Rapid Feed

    98 IPM

  • Main Drive Motor

    89 HP

  • Foot Print

    181"H

MACHINE EQUIPPED WITH

  • Newall Digital Readout
  • Full Pendant Controls
  • Hydraulic Tracer
  • Left Hand Ram
  • 5-Position Right Hand Turret
  • 4-Jaw Chuck

MACHINE DESCRIPTION

Used Summit SC2000. Machine Tool Bids offers plenty of Vertical Turret Lathes and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Summit SC2000 or any of our machines."}" data-sheets-userformat=""2":8192,"16":10}" style="font-size: 10pt; font-family: Arial;">Used Summit SC2000. Machine Tool Bids offers plenty of Vertical Turret Lathes and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Summit SC2000 or any of our machines.
